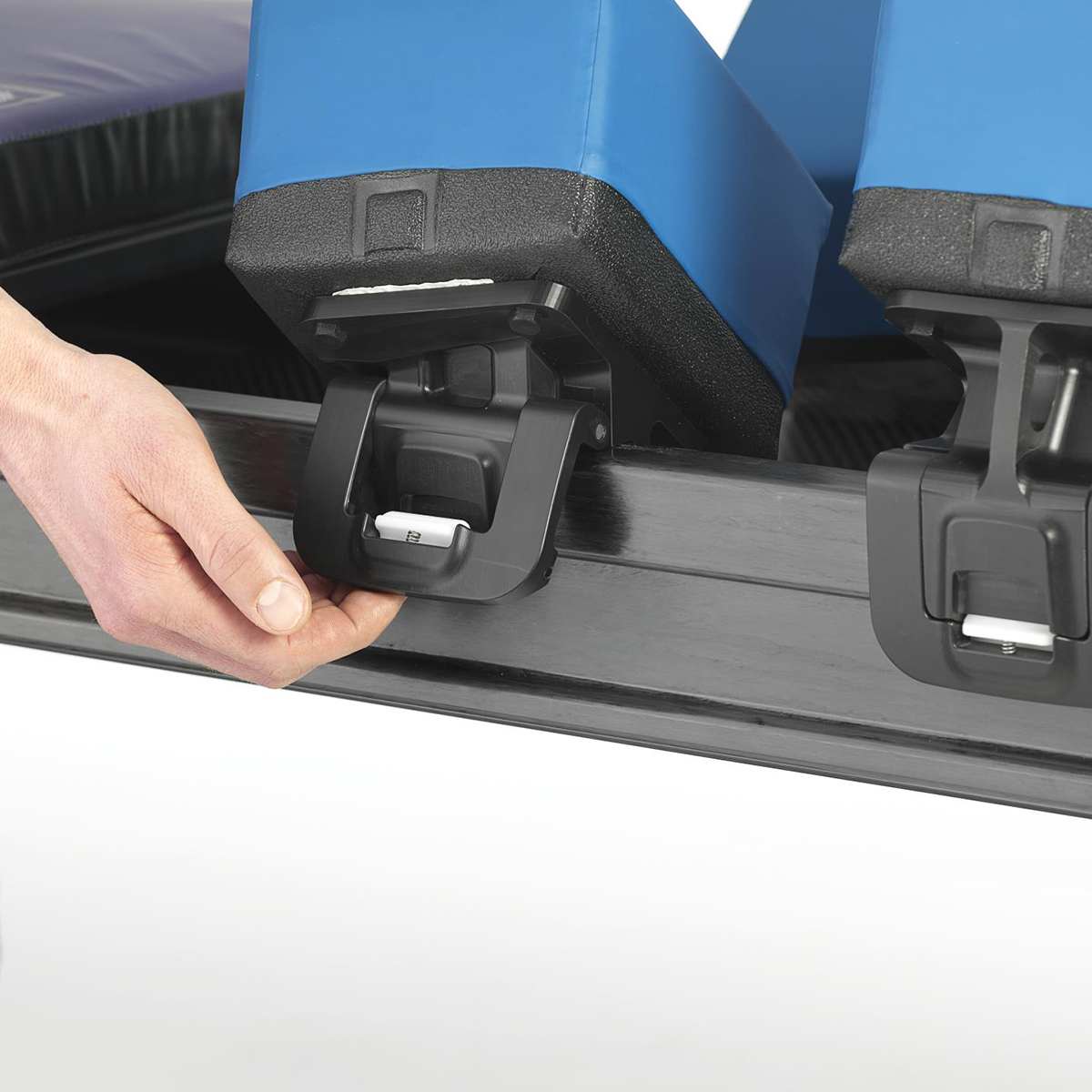

TS 7500 Carbon Spine Tabletop, Clip Close-up
zoom_out_map
TS 7500 Carbon Spine Tabletop TS 7500 Carbon Spine Tabletop, Clip Close-up
TS 7500 Carbon Spine Tabletop TS 7500 Carbon Spine Tabletop, Clip Close-up

Carbon Spine OR Tabletop

A flexible specialty tabletop for spine surgery on the TS 7500 OR Table.



The Carbon Spine OR Tabletop is an ergonomic and flexible solution designed for complex spine surgery procedures. Its low tabletop height and open foot room give you ideal access to the patient. Additionally, the large range of special pads, components and accessories offer flexible positioning to suit all anatomies—enhancing ergonomics for both the patient and your clinical team.



From general to specialty procedures, transform your OR to accommodate multiple disciplines with a single column—the TS 7500 OR Table—and its wide range of exchangeable tabletops.

Read full description



Features

  • Safe – Collision Monitoring & Overload Protection helps keep your patients safe
  • Efficient – Slim column design gives optimal patient and imaging access
  • Versatile – LCD display on the remotes provides real time status of every articulation adjustment made
  • Intuitive – Coupling point system provides audio and visual confirmation of the components being safely attached

Optimal Surgical Site Access

Low tabletop height and open foot room offer ideal surgical access

360° Radiolucency

Enhanced imaging capabilities: up to 1.642 mm of X-ray area

Advanced Patient Positioning

Flexible positioning of special pads, components and accessories

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

Tabletop Dimensions 2050 mm x 432 mm x 270 mm
Patient Weight Capacity 225 kg in zero position; 180 kg with longitudinal shift
Height Adjustment Mobile column: 510 mm – 1,060 mm / Stationary Column: 490 mm - 1,040 mm / Floor Mounted Column: 520 mm – 1,070 mm
Longitudinal Slide Mobile column: 600 mm Stationary Column / 800 mm Floor Mounted Column / 800 mm
Adjustment Speed of Longitudinal Slide Mobile Column: 380 mm/s / Stationary Column: 80 mm/s / Floor Mounted Column: 80 mm/s
X-ray Area (Cranial) Mobile Column: 1442 mm x 432 mm / Stationary Column: 1642 mm x 432 mm / Floor Mounted Column: 1642 mm x 432 mm
Trendelenburg Mobile column: ± 20° / Stationary Column: ± 20° / Floor Mounted Column: ± 20°
Tilt Mobile column: ± 15° / Stationary Column: ± 15° / Floor Mounted Column: ± 15°
