Welch Allyn

ELI 280 Resting Electrocardiograph

The ELI 280 ECG features a large touchscreen display, intuitive user interface and multiple connectivity options to help meet your practice's needs.



The ELI 280 ECG is a portable, easy-to-use, touchscreen solution designed for high-volume ECG environments—from the physician’s office to the hospital. Its widescreen data layout provides simple menu navigation, fast patient data entry and clear verification of proper electrode connections. With proven ECG performance, digital integration and the VERITAS interpretation algorithm, you can feel confident in your data. Select the module that works best for your workflow: the innovative wireless acquisition module (WAM) or the AM12 wired acquisition module. Both include replaceable lead wires, lead fail indicators and remote control with buttons for ECG acquisition and rhythm printing.

Read more

Features

The ELI 280 ECG, previously branded as Welch Allyn, Mortara and Burdick, is now a Baxter diagnostic cardiology device. The same reputable device is designed to help meet the demands of high-volume ECG workflows in both acute and primary care environments.

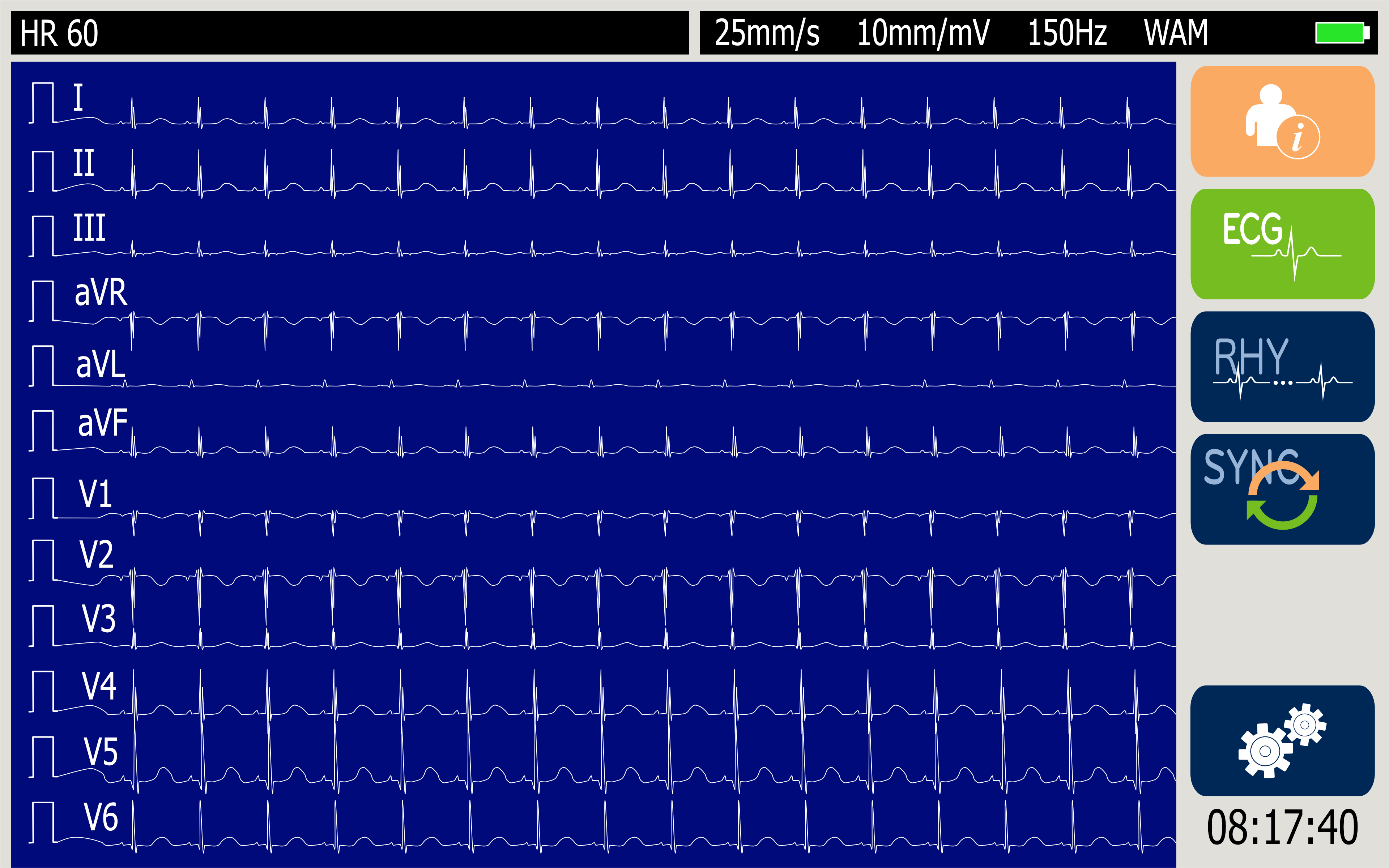

  • 10.1", high-resolution, color touchscreen presents all 12 leads of data simultaneously

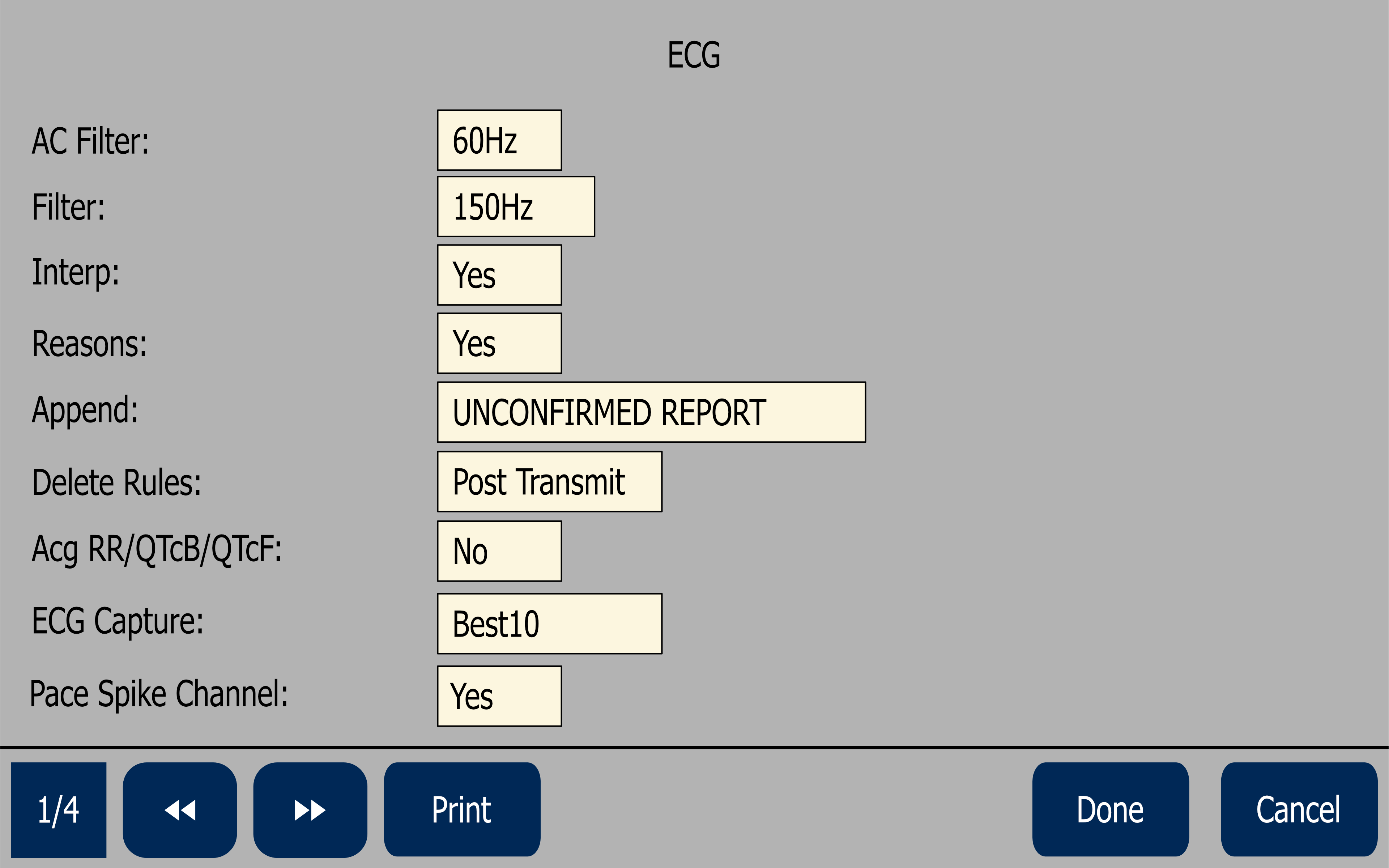

  • Captures the best 10 seconds of ECG data from memory, reducing need for repeat ECGs
  • VERITAS algorithm uses gender-specific, adult and pediatric criteria for interpretations
  • Widescreen display helps improve navigation, data entry and electrode connection verification
  • Optional wireless data acquisition increases workspace flexibility so you can move freely around the room
  • Supports pacemaker spike detection with 40,000 sps/channel data capture
  • Includes hook-up confirmation by detection and display of lead reversals
  • 1k sps/channel capture for signal assessment during analysis, display and printing
ELI 280 Resting Electrocardiograph seen in midground with clinician's finger touching screen, blue curtain in background



Education & Documentation

Get in the know to get the most value out of your solution.



Product Documentation
ELI 280 Resting Electrocardiograph's wireless acquisition module, being held by female clinician in an exam room

Wireless Freedom

With our Wireless Acquisition Module (WAM), you can capture ECGs untethered from patients, so you can move freely throughout the exam room without cabling to get in the way. And because the ECG and acquisition module have a wireless connection, the ECG no longer needs to be at a bedside—helping you monitor patients in isolation or critical situations.
