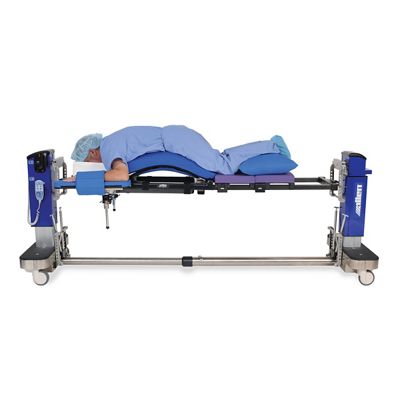

Allen Bow Frame in use, patient prone

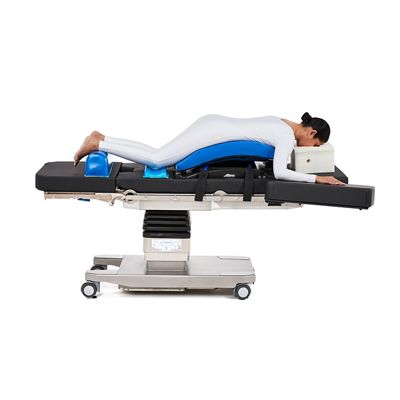

Allen Bow Frame in use, patient prone
Allen Bow Frame, technician setting up

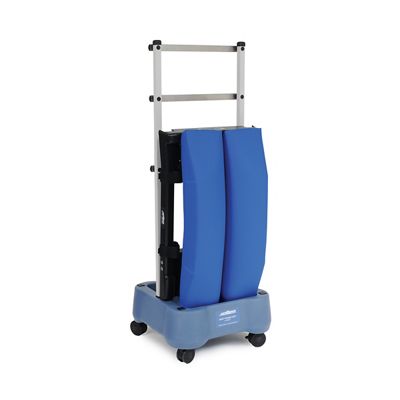

Allen Bow Frame in storage cart
zoom_out_map
Allen Bow Frame diagonal view Allen Bow Frame in use, patient prone Allen Bow Frame in use, patient prone Allen Bow Frame, technician setting up Allen Bow Frame in storage cart
Allen Bow Frame diagonal view Allen Bow Frame in use, patient prone Allen Bow Frame in use, patient prone Allen Bow Frame, technician setting up Allen Bow Frame in storage cart

Allen® Bow® Frame

#A-70800

Versatility and the highest patient weight limit of 227 kg.



The Allen Bow Frame is a platform used to perform less complex spine surgeries. The Bow Frame is more versatile than the existing Wilson™ Frame, as the single device attaches to standard OR tables, Allen Advance Table, Allen Flex Frame and the Mizuho OSI Modular Table System*.



Its shape creates the desired reverse lordosis needed to open the intervertebral spaces. The Bow Frame enables the patient’s abdomen to hang free during procedures. It is fully radiolucent and allows for unrestricted C-arm access. The removable crank is used to adjust the amount of flex and tension in the patient supports. Every Bow Frame comes with a storage cart. Ideal for use with Laminectomy, Microdisc procedures, Disc procedures, Fusion procedures, Decompressions, and Foraminotomy.



*Compatible with rails that are 3.2 cm wide x 3.8 cm tall with a 36.8 cm space between.

Read full description



Overview

Features

  • Radiolucent
  • Patient supports are adjustable to fit patients of various sizes
  • Patient supports adjust laterally up to 25.4 cm to relieve pressure on the patient’s abdomen
  • Lightweight for easy set-up
  • Compact for easy storage
  • Storage cart included for easy transport
  • Skin Care Cover disposables are comprised of cosmetic foam

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

Fits the Allen Advance Table, Allen Flex Frame, Mizuho OSI Modular Table System, and OR Tables. Compatible with rails that are 3.2 cm wide x 3.8 cm tall with a 36.8 cm space between.

Patient Weight Capacity 227 kg
Device Weight 11.3 kg
CE Marked Yes
